Sony HVO-500MD Full HD medical recorder (Surgical Version)

  • 2012765
Full HD medical recorder with USB/NAS recording and still image capture Support modern... more
Product information "Sony HVO-500MD Full HD medical recorder (Surgical Version)"

Full HD medical recorder with USB/NAS recording and still image capture

Support modern workflows with simultaneous Full HD video recording to internal drive, USB or NAS external media. Enjoy high image quality, reliable recording and long record time, easy operation and flexible integration. Optimised for surgical applications with still image capture.

From patient records to education, training and referral to other physicians, modern medical workflows benefit from the increased convenience and detail offered by Full HD video recording.

The HVO-500MD Medical Recorder (Surgical Version) has been designed for use in a wide range of clinical environments, from operating rooms to surgical centres and doctors’ offices.

Suitable for storing Full HD video from endoscopic, laparoscopic and other compatible surgical imaging systems, the recorder offers extensive connection options with a wide range of current and legacy devices.

Compact, lightweight and silent in operation, the HVO-500MD (Surgical Version) stores Full HD or Standard Definition video on its high-capacity internal hard disk drive. Via simple menu selection, video can be recorded at the same time to an external USB drive or network server. This simultaneous recording capability supports modern hospital workflow, providing an extra safeguard against the risk of losing valuable data.

Optimised for surgical applications, the recorder can also capture and play back still images that can be printed using an optional Sony UP-DR80MD colour printer.



Features

  • Full HD video recording
  • Still image recording
  • Simultaneous recording on internal HDD and external media
  • Wide range of interfaces and network data transmission
  • Long recording time, even in Full HD at best image quality settings
  • Compliance with Medical Safety Standards

Related links to "Sony HVO-500MD Full HD medical recorder (Surgical Version)"
Recording Features Recording Video Format MPEG-4 AVC/H.264 Recording Audio... more
Technical Data "Sony HVO-500MD Full HD medical recorder (Surgical Version)"

Recording Features

Recording Video Format MPEG-4 AVC/H.264
Recording Audio Format AAC LC
Recording File Format MP4
Recording Media Internal HDD (500GB), External USB Storage, Network (CIFS)
Recording Resolution 1920 x 1080/59.94i, 1280 × 720/59.94p, 1280 × 720/50p, 720 × 480/59.94i, 720 × 576/50i
Recording Bit Rate (HD) 20Mbps (Best), 12.5Mbps (High), 6Mbps (Standard)
Recording Bit Rate (SD) 6Mbps (Best), 3.75Mbps (High), 2.25Mbps (Standard)
3D Recording -

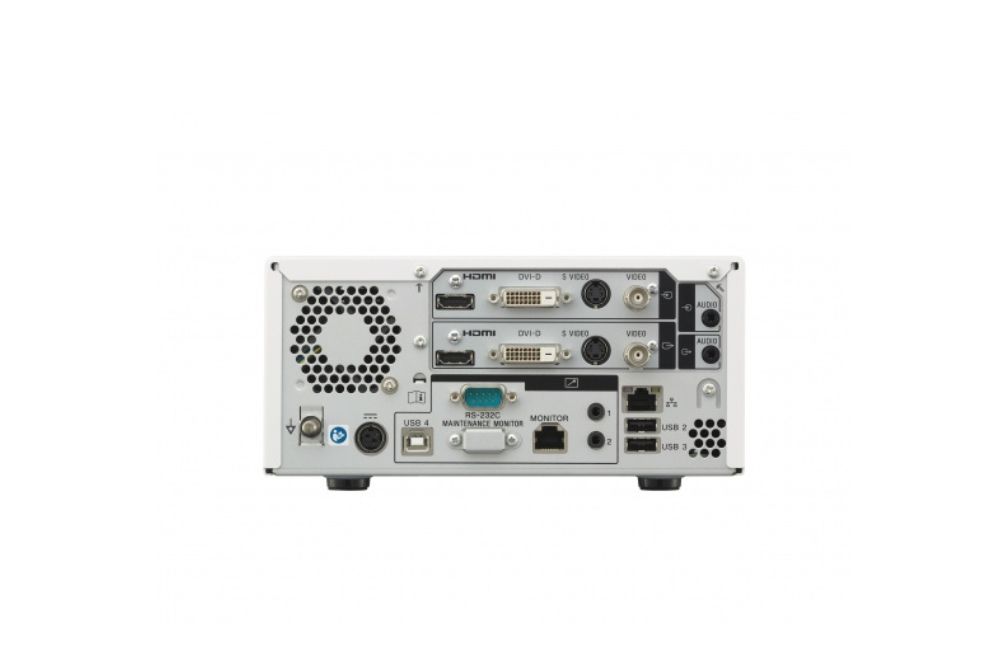

Connectors

Input Connectors HDMI (Type A) (1), DVI-D (DVI 19-pin) (1), S VIDEO (Mini DIN 4-pin type) (1), VIDEO (BNC type) (1)
9-pin) (1), S VIDEO (Mini DIN 4-pin type) (1), VIDEO (BNC type) (1) AUDIO (Stereo mini jack) (1)
DC IN (DIN 3-pin)
Output Connectors HDMI (Type A) (1), DVI-D (DVI 19-pin) (1), S VIDEO (Mini DIN 4-pin type) (1), VIDEO (BNC type) (1)
AUDIO (Stereo mini jack) (1)
Other Interfaces USB (Type A) (3), USB (Type B) (1), Network (RJ-45, 1000 Base-T/100 Base-TX) (1)), RS-232C (D-sub 9-pin) (1) *1, REMOTE contact switch (stereo mini jack) (2) REMOTE MONITOR (RJ-45) (1), Equipotential

General

Power Requirements +12 V to +24 V DC (supply from AC adaptor)
Input current 3.2 A to 1.6 A
Operating Temperature 5°C to 40°C (41°F to 104°F)
Operating Humidity 20% to 80% (Maximum wet-bulb temperature: 30°C (86°F)) (no condensation)
Operating Pressure 700 hPa to 1060 hPa
Storage and transport temperature -20°C to +60°C (-4°F to +140°F)
Storage and transport humidity 20% to 90% (Maximum wet-bulb temperature: 30°C (86°F)) (no condensation)
Storage and transport pressure 700 hPa to 1060 hPa
Mass *2 2.9 kg (6 lb. 6.3 oz.)
Dimensions (including longest protrusions) *2 212.0 × 287.7 × 105.5 mm (8 3/8 × 11 3/8 × 4 1/4 in.)
Supplied Items Before Using This Unit (1), CD-ROM (Instructions for Use, PROTOCOL MANUAL) (1), Warranty booklet (1), AC adapter (1), AC adapter Instructions for Use (1), Service Contact List (1)

Notes

*1 This interface is disabled on surgical version.
*2 The values for mass and dimensions are approximate.
