- Order number: 2012782
Ideal for microsurgical applications
Built on Sony’s expertise and knowledge, accumulated over decades as a world leading supplier of high quality broadcast and professional products, the MCC-1000MD features the latest generation image sensor technology offering enhanced low-light sensitivity compared to traditional cameras on the market.
Designed for medical microsurgical applications including ophthalmology and neurology procedures, the compact and lightweight design allows the C-mount head to be easily mounted on most existing surgical microscopes. Captured HD images can be displayed on our surgical monitors for everyone to see in the OR and recorded with our medical recorders. Surgical footage can be shared with clinicians/colleagues, at conferences and symposiums, and for surgical training and education.
Camera Head
Image Device | 1/2.8 type "Exmor" R CMOS image sensor, RGB 3CMOS type |
Effective Pixels | 1920 (H) x 1080 (V) |
Lens Mount | C-mount |
Sensitivity | F13 (Typical) (At 1080/59.94i, 89.9% reflection, 2000 lx) F20 (Typical) (At 1080/59.94i, 89.9% reflection, 2000 lx, “High Sensitivity” is “ON”) |
Picture S/N | 0 dB to 30 dB |
Horizontal Resolution | 1000 TV lines or more |
Gain | 0 bis 30 dB |
Shutter Speed | 1/60 to 1/10000 |
Slow Shutter | 2 to 8 Frames |
Camera Cable Connector | 20-pin, round |
Camera Control Unit
HD-SDI Video Format | 1080/60i 1080/60p 1080/50i 1080/50p |
Picture Profile | Yes (Six settings) |
Picture Flip | Yes |
Freeze Function | Yes (capturing a still image) |
Color Bar | Off / Multi / EBU 75% / EBU 100% / Test Saw |
Camera Synchronization for 3D-shooting | Yes |
AC Power Operation | Yes |
Connectors
Input Connectors | Remote contact switch connectors 1, 2 (Stereo mini jack) |

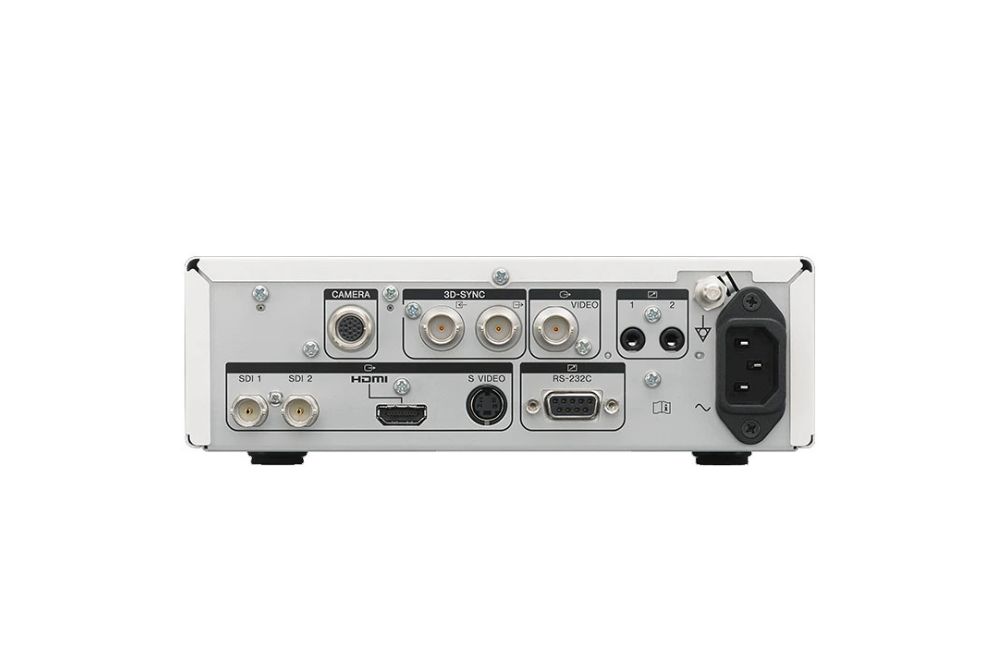

Output Connectors | VIDEO OUT (x1) (BNC) S VIDEO OUT (x1) (4-pin mini DIN connector) HDMI OUT (x1) (HDMI connector) HD-SDI OUT (x2) (BNC, HD/3G) Input/Output Connectors CAMERA (x1) (20-pin, round) RS-232C (x1) (D-sub 9-pin) 3D-SYNC IN, OUT (BNC) |
Other Connector | Equipotential ground connector (x1) |
General
Power Requirements | 100 V to 240 V AC, 50/60Hz |
Input Current | 0.40 A – 0.25 A |
Operating Temperature | 0°C bis 40°C 32 °F bis 104 °F |
Operating Humidity | 20% to 80% (no condensation allowed) |
Storage and Transport Temperature | -20°C to +60°C -4°F to +140°F |
Storage and Transport Humidity | 20% to 90% (no condensation allowed) |
Storage and transport pressure | 700 hPa to 1,060 hPa |
Mass (Camera Head) | approx. 1.9 kg approx. 4 lb. 3 oz |
Mass (Camera Control Unit) | ca. 1,9 kg ca. 4 lb 3 oz |
Dimensions (Camera Head) (WHD, excluding longest protrusions) *1 | approx. 34 x 39 x 43 mm approx. 1 3/8 x 1 9/16 x 1 3/4 in. |
Dimensions (Camera Control Unit) (exclusing longest protrusions) | approx. 200 x 62 x 264 mm approx. 7 7/8 x 2 1/2 x 10 1/2 in. |
Supplied Items | Lens mount cap (x1) Before Using This Unit (x1) CD-ROM (Instruction for Use in PDF format (x1) Warranty Booklet (x1) Service Contact List (x1) |
Separately-Sold Accessories | Camera Cable - CCMC-SA06 (standard 6 m, 19.6 ft.) - CCMC-SA10 (standard 10 m, 32.8 ft.) - CCMC-SA15 (standard 15 m, 49.2 ft.) - CCMC-EA05 (extension 5 m (16.4 ft.) Foot Switch (FS-24) *2 |
Compliance with Medical Safety Standards | This product is distributed to the US and EU as a medical device and satisfies product safety standards (e.g. IEC 60601-1). |
Instructions for use Sony MCC-1000
