e-medic™ Medical Panel PC Silence TP-22P-PI

e-medic™ Silence ST-M(b) Medical Computer Powerful, fanless medical mini PC with IP65 protection rating on 5 sides The fanless e-medic™ Silence ST-M(b) computers are compact medical PC systems that are ideal for long-term use in clinics and doctors' offices. The mini PC is resistant to mechanical vibrations and shocks: the processor, a 13th generation CPU, is soldered to the circuit board, and the RAM socket and cable entries are mechanically protected. In addition, the ST-M(b) boasts high-quality features: 3 HDMI monitor outputs, WLAN module 802.11 b/g/n/ac with 2x combo antenna for 2.4 and 5GHz, heat pipe cooling system with full aluminum heat sink profile housing, as well as VESA mount and DIN/wall mount bracket. Disinfectable with wipes Mounting possible Robust design Interfaces Electric safety The e-medic™ Silence ST-M(b) meets the electromagnetic compatibility requirements of EN / IEC 60601-1-2. In addition, the power supply unit of this product has been TÜV-tested for compliance with the EN / IEC 60601-1 safety standards for medical electrical equipment. The e-medic™ computer may be used within the patient environment. However, connected peripheral devices within the patient environment, such as printers or cameras, must either also comply with the requirements of IEC 60601-1 and IEC 60601-1-2 or be additionally equipped with two-stage protection for the patient. This additional protection can be ensured, for example, by means of isolating transformers or isolators in the connecting cable. Benefits: Hygienic design: fanlesss, completely sealed, IP65 protection (5 pages) Intel® Core™ i5-13500T, 16 GB RAM, 250 GB SSD 3x HDMI, 4x USB 3.0, 2x RS232, 2x LAN, Audio WiFi 2.4/5 GHz & Bluetooth 4.2 with combination antenna Robust case: ST-M(b) Mini ITX – ideal for critical locations Protection against voltage spikes in medical devices Energy saving – 63W medical power supply included 3-year warranty and low maintenance thanks to fanless design

Medical Computer e-medic™ Silence ST-M – Raptor Lake (14. gen.) Powerful, fanless medical computer The fanless e-medic™ Silence ST-M computer is a compact medical PC system that is ideal for long-term use in clinics, doctors' offices, laboratories, or industrial settings. The use of modern Intel® Raptor Lake processors has created a fast system that, in combination with the specially developed 4-channel heat pipe, ensures high performance with minimal noise. Current imaging requires powerful graphics, which the e-medic™ Silence ST-M Raptor Lake™ provides thanks to Intel® UHD Graphics 770. This small box PC can stream 4K content smoothly to multiple screens simultaneously. The PC can be ordered with Windows® 11 Pro and a warranty of up to 5 years. Benefits: Maintenance-free, sealed housing Quadruple View – 4 screens can be connected Versatile – can be mounted on the wall, VESA brackets, or support arms Small, compact, and lightweight (4 kg) Designed for 24/7 use Fanless

e-medic™ Silence ST-M(i) Medical Computer Powerful, fanless, Medical Mini PC with IP65 protection class on 5 sides The fanless e-medic™ Silence ST-M(i) computers are compact medical PC systems that are ideal for long-term use in clinics and doctor's offices. A highlight of the e-medic™ Silence ST-M(i) is the already galvanically isolated interfaces, so the RS232 port is isolated with up to 4 kV and the RJ45 LAN connection with up to 5 kV. Additional external insulators are therefore unnecessary. The ST-M(i) also shines with high-quality features: 10th generation Intel processor, 3 HDMI monitor outputs, WLAN module with 2x combination antenna for 2.4 and 5GHz, heat pipe cooling system with all-aluminum heat sink profile housing as well as (optional) VESA mount and DIN/wall mounting bracket. The aluminum profile housing reliably protects against mechanical stress. Small gap dimensions and special seals make the housing dust-tight and water-resistant on 5 sides according to IP 65. In addition, the e-medic™ Silence ST-M(i) can be used in temperature environments from 0 to +45°C and a relative humidity of 90%. There is a pressure compensation element to ensure tightness under all working conditions. The aluminum full metal housing is protected against electromagnetic interference (EMI), the EPDM seal is made of electrically conductive material. A heatpipe cooling system is attached directly to the black anodized all-aluminum heatsink profile housing. Optional mounting options include a DIN rail, DIN mount, wall mount and VESA mount. Easy to disinfect Thanks to special EPDM seals, small gaps and IP65 protection on five sides (except the back), the device is both dust and water-repellent, allowing it to be cleaned with suitable disinfectants without moisture penetration. Fanless cooling CPU design The temperature inside the closed, fanless aluminum housing is stabilized exclusively via a special CPU cooling system. The heat from the CPU is dissipated directly to the housing via an aluminum heat sink. VESA 100/100 VESA mounting allows flexible positioning - e.g. B. close to the screen, under a shelf or on vehicle or trolley supports - which shortens cable routes and brings ergonomic and hygienic advantages. Full facilities The Silence ST-M(i) is equipped with an additional potential equalization (ZPA) on the housing. Thanks to RS232 and USB 3.0 interfaces and HDMI outputs as well as WLAN, the medical box PC is suitable as the basis for a fully-fledged practice system, for example when used on visiting trolleys, as a control interface for medical devices. Electrical safety The Mini-PC e-medic™ Silence ST-M(i) meets the requirements of electromagnetic compatibility according to IEC 60601-1-2:2014. In addition, the power supply of this product is tested for compliance with the safety standards EN / IEC 60601-1 for medical electrical devices. The e-medic™ computer may be used within the patient environment. Betriebskompatibilität Both Microsoft Windows 10 Pro (not included) and Microsoft Windows 11 Pro (not included) can be installed on the e-medic™ Silence ST-M(i). In addition, the e-medic™ ST-M(i) is compatible with Linux systems, such as Ubuntu. Benefits: Hygienic design: Fanless, fully enclosed, IP65 protection (5 sides) Intel® Core™ i5-10500T, 16GB RAM, 250GB SSD 3x HDMI, 4x USB 3.0, 1x RS232, 2x LAN, 1x isolated LAN, Audio Robust housing CPU cooling system With built-in interface isolation (LAN & RS232 Ports) No operating system included. Without pre-installing Windows 10 Pro/Windows 11 Pro.

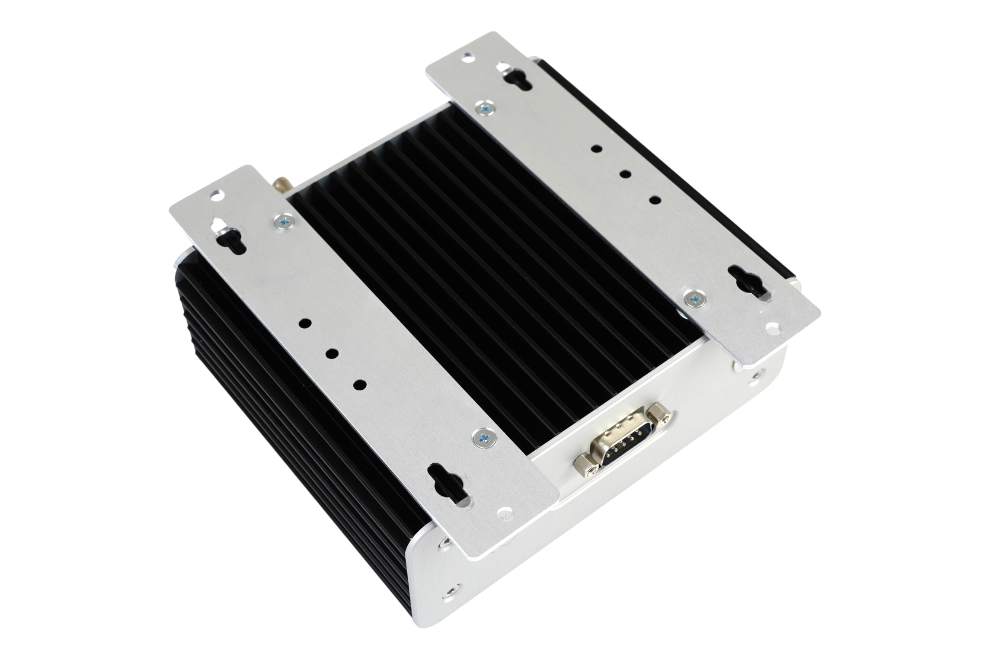

e-medic™ Silence ST-M(i)/ST-M(b) Wall Mount Accessoiry for e-medic™ Silence ST-M(b) & e-medic™ Silence ST-M(i) Thanks to the VESA mount, e-medic™ Silence ST-M(b) and e-medic™ Silence ST-M(i) can be mounted in a variety of ways, such as on support arms, carts or monitors. Benefits: Combined wall mount for the mount of e-medic™ Silence ST-M(b)/e-medic™ Silence ST-M(i) Various mounting options such as on a DIN rail or wall VESA 100 x 100mm Anodized aluminum
