e-medic™ Silence XS-M Medical Computer (13th Generation)
Powerful, Fanless Medical Mini PC
With the e-medic™ Silence XS-M Mini PC, we have developed a fanless microcomputer designed for low-maintenance, long-term use in medical settings. Despite—or perhaps precisely because of—its very compact dimensions (134 x 108 x 55 mm), the Silence XS-M is a particularly robust medical PC system. It is one of the smallest mini-computers designed for medical applications. The enclosure nevertheless offers sufficient space for the powerful Intel® Core i5 1335UE processor.
The aluminum extrusion housing provides reliable protection against mechanical stress. Tight clearances and special seals make the housing completely dustproof to IP60 standards. All of the electronics inside the mini-PC are located on a single circuit board. There are no cables or unsecured connectors that could come loose due to vibrations. A heat pipe cooling system is attached directly to the black anodized solid aluminum heat sink profile housing. Optional mounting options include a DIN rail mount, wall mount, and VESA mount.
Fully Equipped
The Silence XS-M is equipped with an additional equipotential bonding (ZPA) on the chassis. With RS232 and USB 3.2 interfaces, HDMI, and Wi-Fi, this mini PC is suitable for use at mobile workstations in the medical field and, of course, anywhere where compact size or light weight is required.
Fanless CPU Cooling Design
The temperature inside the enclosed, fanless aluminum housing is stabilized exclusively by a special CPU cooling system. Heat from the CPU is dissipated directly to the housing via an aluminum heat sink.
Electrical Safety
The e-medic™ Silence XS-M mini-PC meets the electromagnetic compatibility requirements of IEC 60601-1-2:2014. The computer is approved for use in patient environments.
Operational Compatibility
Microsoft Windows 10, Microsoft Windows IoT, and Linux can all be installed on the e-medic™ Silence XS-M (not included).
Advantages:
- Quiet & fanless
- Small, compact & powerful
- Includes Wi-Fi
- Low maintenance
- Dust-protected to IP60 rating
- RS232 serial interface
Specifications
| Key Specifications | |
|---|---|
| Processor | Intel Core i5 1335UE |
| Motherboard | NUC 4.09“ x 4.02” (104 x 102 mm); GigalPC Qbi-1335A |
| RAM | 4 to 32 GB DDR5 |
| SSD/HD | 250 GB SSD (max.1TB) |
| Graphics | Intel® Iris XE, 2x HDMI 2.0 4K@60Hz, 1x DP 1.4 (USB-C alt mode) 8K@30Hz |
| Operating Systems | MS Windows 10, MS Windows 10 IoT, Linux |
| Front-Panel Interfaces | 1x RS232/422/485, 2x USB 3.2 (Gen 2 x 1), 1x Audio (Mic-In/Line-Out), 1x USB 3.2 Type-C (Gen 2 x 1) (with DP alt. mode), 1x Power Button + LED |

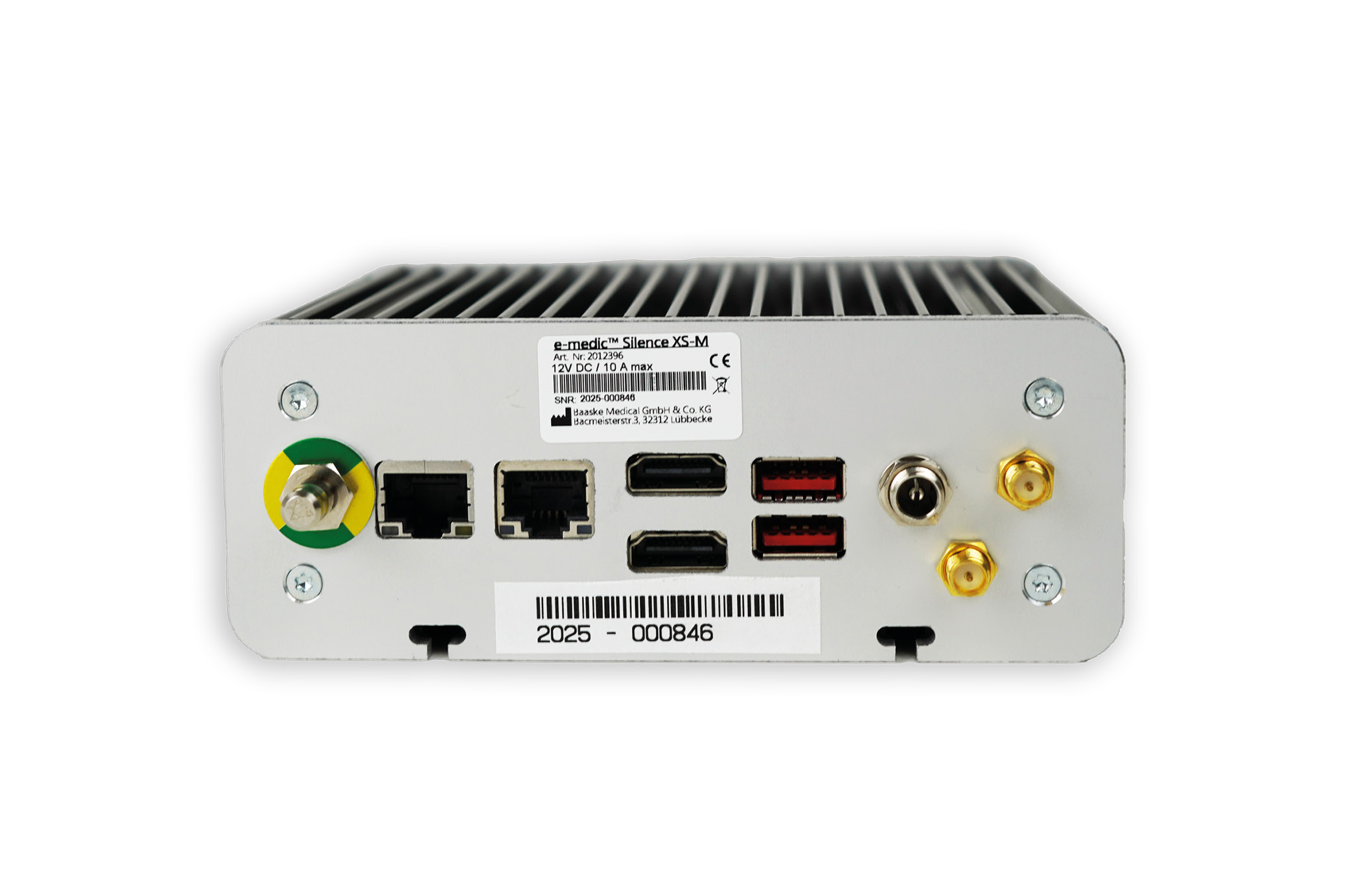

| Rear Interfaces | 2x USB 3.2 (Gen 2x1), 2x HDMI, 2x RJ45 (1x LAN, 1x 2.5 LAN), 1x DC-In |

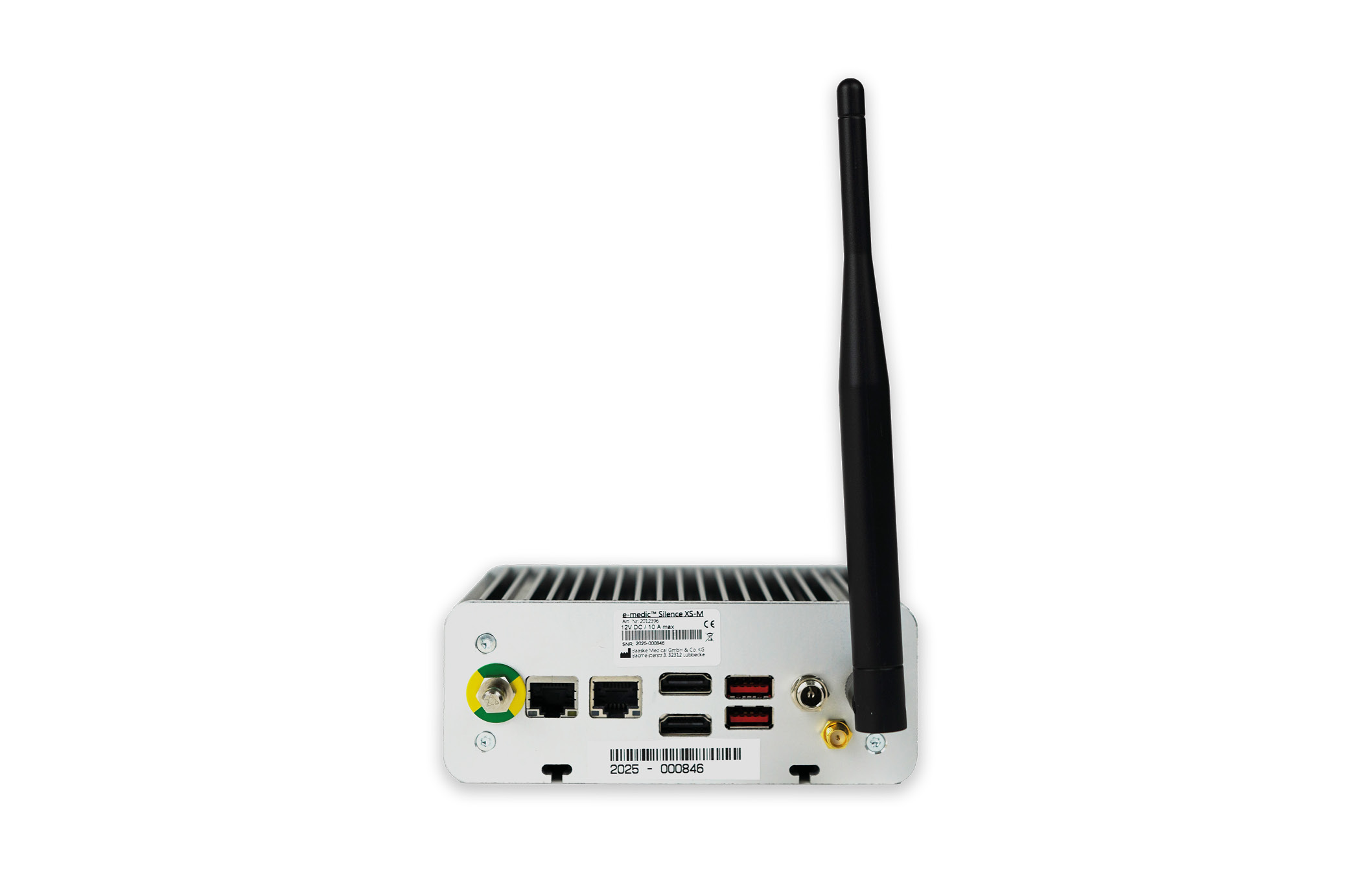

| Wi-Fi | Intel 802.11 b/g/n/ac dual-band Wi-Fi module / Bluetooth 5.2 |
| Power Supply | Output: 12V/120W |
| Cooling | Heat pipe cooling system, mounted directly on the housing |
| Housing | All-aluminum heat sink profile housing, black anodized |
| Dimensions | 134x108x55 mm (WxDxH) |
| Mounting Options | DIN rail mount / wall mount, 19-inch rack mount |
| Weight | 1.2 kg |
| Operating temperature | 0–40°C |
| Humidity | 10–90% relative humidity, non-condensing |
| Protection Class | IP60 |
| Compliance | CE, RoHS, IEC 60601-1-2:2014 + A1:2020, IEC 61000-3-3:2013 + A1:2017 + A2:2021 |
